Mercedes Steering Lock (ELV) Failure: Symptoms & Fixes

You put the key in your Mercedes and turn it, and nothing happens. The dash doesn't light up, the starter doesn't crank, and the steering wheel won't budge. On many Mercedes-Benz models built in the 2000s and early 2010s, a likely cause is the electronic steering lock, which Mercedes calls the ELV (Elektronische Lenkradverriegelung). Some shops call it the ESL.

This guide explains what the ELV does, how to spot a failure, which models are commonly affected, and what your options are for getting the car running again.

What the ELV Does

Older cars locked the steering with a mechanical pin attached to the ignition cylinder. Many Mercedes models from this era replaced that pin with a small electronic module on the steering column. It contains a motor that drives a locking bolt in and out.

The ELV works together with the Electronic Ignition Switch (EIS, also called EZS), the slot where you insert your key:

The EIS reads your key and confirms it belongs to the car.
The EIS tells the ELV to unlock the steering.
The ELV unlocks and reports back to the EIS that it is open.
Only after that confirmation does the EIS switch on the ignition and allow the engine to start.

That confirmation step is why a bad steering lock can leave the whole car dead. If the EIS doesn't hear back from the ELV, it won't power up the car. This is an intentional anti-theft design.

Common Symptoms of Mercedes ELV Failure

Mercedes diagnostic references and technical service information describe a consistent set of symptoms:

The key turns, or goes in, but nothing happens. There are no dash lights and no crank.
The steering wheel stays locked even with the correct key inserted.
You hear no "click" from the steering column when you insert the key, or you hear a faint clicking or whirring as the motor struggles.
The problem comes and goes. The car starts after a few tries one day and refuses the next. ELV failures often start out intermittent before the car stops starting altogether.
A steering lock warning or fault codes. A scan tool may show codes such as B100B (steering column lock actuator circuit) or B2254 (steering lock control unit internal fault).

These symptoms overlap with a failing ignition switch or a bad key, so testing is important before you replace anything.

What Causes It

The most common causes are:

A worn or failed ELV motor. The small electric motor inside the module wears out.
A jammed locking bolt. Mercedes issued a service bulletin for the Sprinter (906) explaining that the steering lock pin can wedge in the steering column's retaining ring. When that happens, the lock won't open and the key won't turn. Parking with the wheels turned and the steering under load makes binding more likely.
An EIS fault. The ignition switch may not be sending the unlock command at all.
Wiring, fuse, or communication (CAN bus) problems between the EIS and the ELV.
Low battery voltage, which can leave too little power for the lock motor.

A fault code tells you which system is complaining, but it doesn't tell you which part has failed. That's why a proper diagnosis checks power, ground, and communication between the EIS and the ELV first.

Which Mercedes Models Are Commonly Affected

Steering lock failures are widely reported on these models:

W204 C-Class
W207 E-Class Coupe/Cabriolet and W212 E-Class
X204 GLK
W906 Sprinter, which is the subject of a Mercedes technical service bulletin about the steering lock not disengaging

Not every Mercedes from this period uses the same steering lock design, and parts vary by model and production date. The quickest way to know what's on your car is to call with the year, model, and VIN.

Why ELV Replacement Is a Hard Job

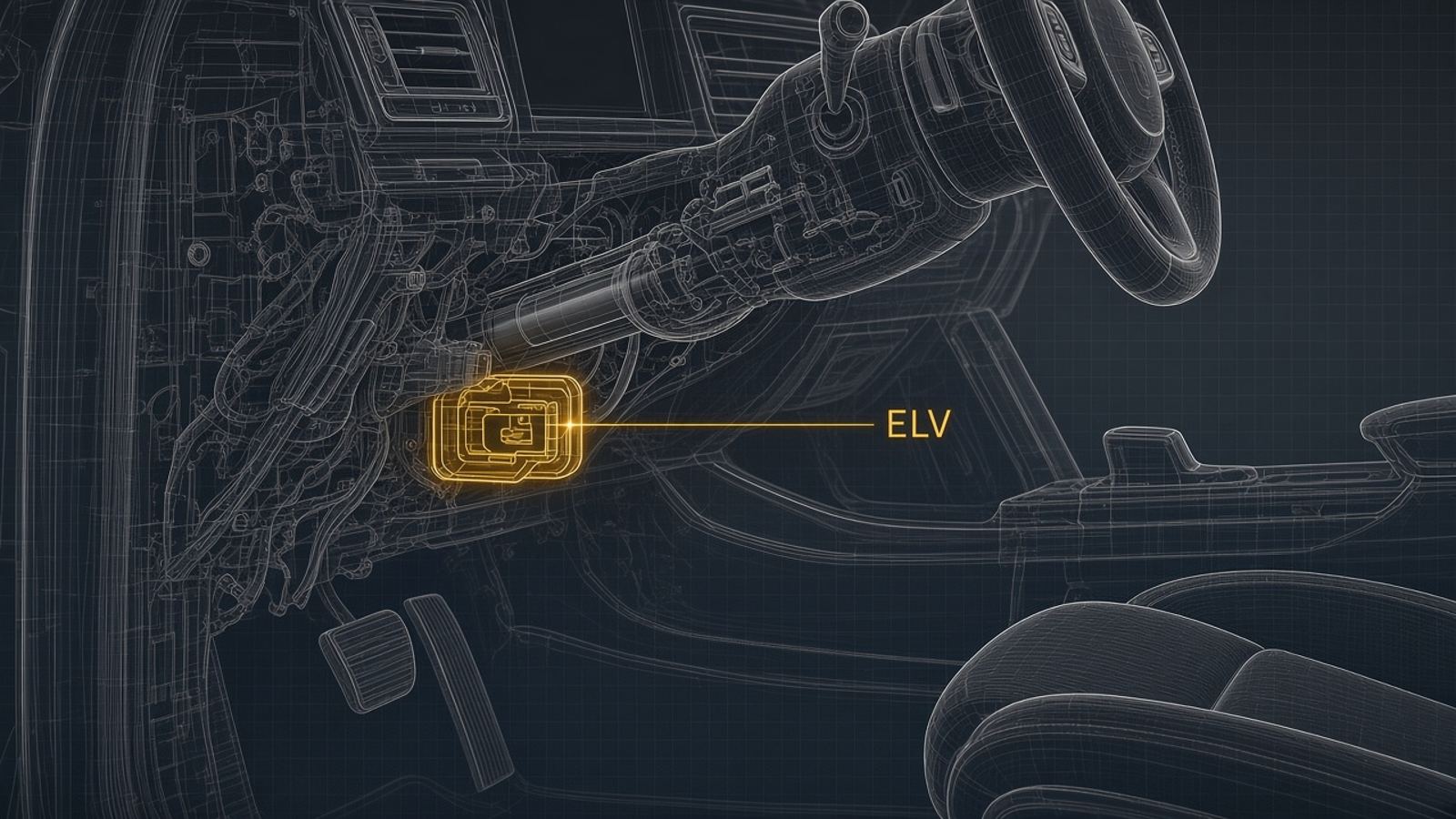

The ELV isn't sitting behind an easy-access panel. It's mounted deep on the steering column, down near the pedals, and getting to it is real work. The job is usually quoted at 3 to 4 hours of labor:

Remove the steering wheel.
Unclip the surrounding trim.
Unscrew and pull the steering column.
Drill out the ELV.

That labor is a big part of why dealers commonly quote $2,000 to $3,000 for the job. And a dealer replacement uses the same mechanical design as the original, so the same failure can happen again down the road.

The Eurokeys approach: we remove the mechanical ELV and replace it with a solid-state electronic module, a circuit board with no mechanical parts to wear out. It's programmed to your car so it works with your ignition switch and keys. And we warranty our work.

Your Options: ELV Replacement and Programming, or the Dealer

1. Solid-state ELV replacement and programming (Eurokeys). Eurokeys removes the failed mechanical steering lock and replaces it with a solid-state electronic module, then programs it to your car. The new module isn't plug-and-play. It has to be programmed, or "personalized," to match your car's ignition switch so the two modules recognize each other. Specialist programming equipment can do this without sending the car to the dealer.

2. Going to the dealer. A Mercedes dealer can diagnose the problem and install factory parts, but the factory replacement uses the same mechanical design as the part that failed, so it can fail again. In the Sprinter bulletin, the dealer remedy was to replace the steering column together with the steering lock, and on some early vehicles the ignition switch as well.

A word of caution: if you suspect the steering lock, don't keep forcing or jiggling the key. You're unlikely to fix it that way, and you risk damaging the key or the ignition switch.
